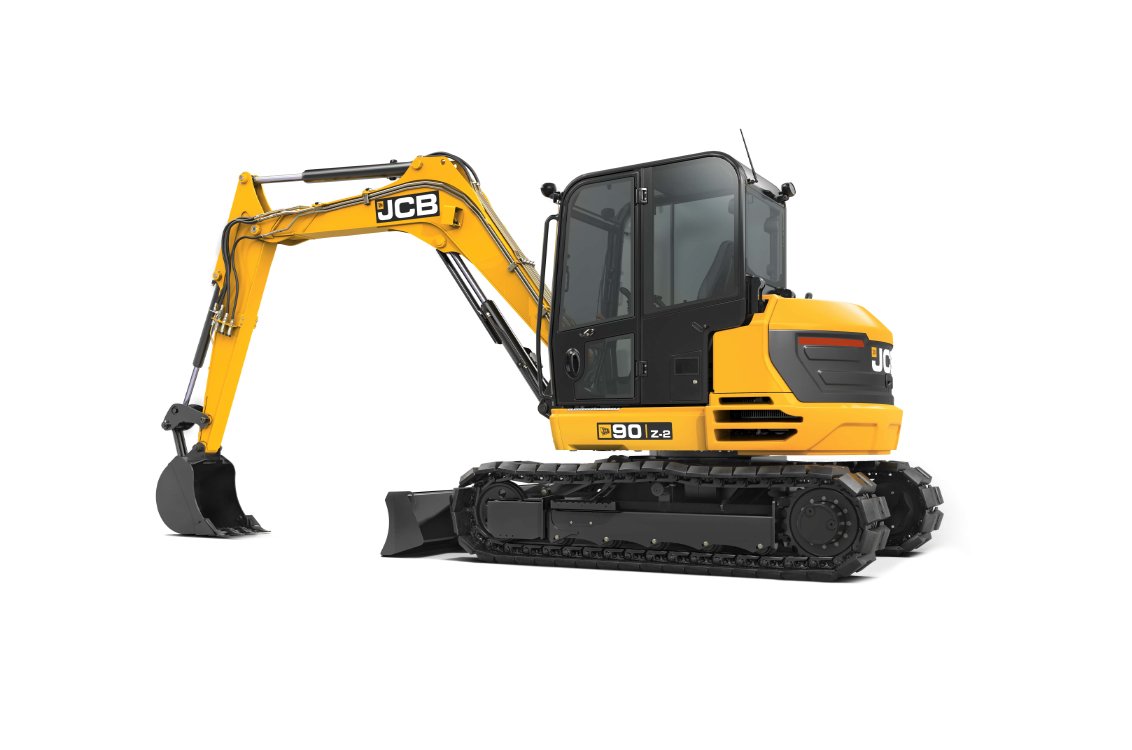

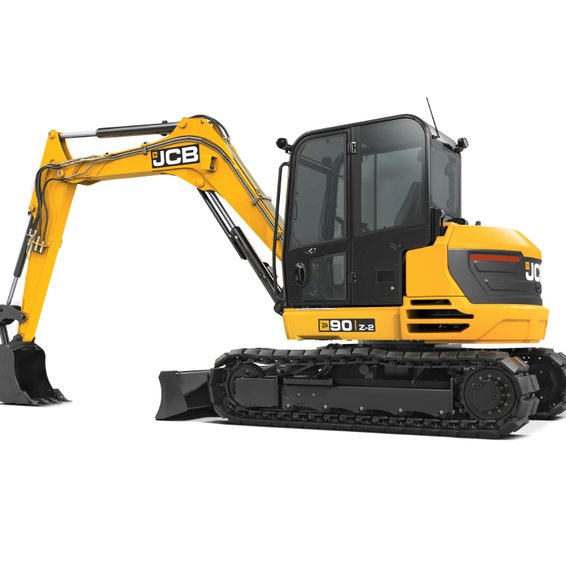

JCB 90Z-2 Mini Excavator

New Equipment

Designed to perform. Built to last.

With build quality, power, efficiency, comfort, safety and serviceability in abundance, the new generation JCB 90Z-2 compact excavators are ready to provide ultimate productivity on any job.

Request a Quote

Specifications

Bucket Capacity	0.8 cu yd

Operating Weight	19621.0 lb

Fuel Tank Capacity	3.2 gal

Track Length	91.5 in

Ground Clearance	13.8 in
Length of Track on Ground	91.5 in
Maximum Digging Height	269.8 in
Maximum Dumping Height	195.7 in
Overall Height	106.5 in
Overall Length	229.6 in
Overall Width	90.6 in

Displacement	152.0 cid
Engine Model	KDI 2504 TCR
Engine Manufacturer	JCB
Power Mode	Diesel
Emissions Tier	Tier 4 Final
Horsepower	60.0 hp
